Rotary Latches and Strikers

hgfhgfhfgh

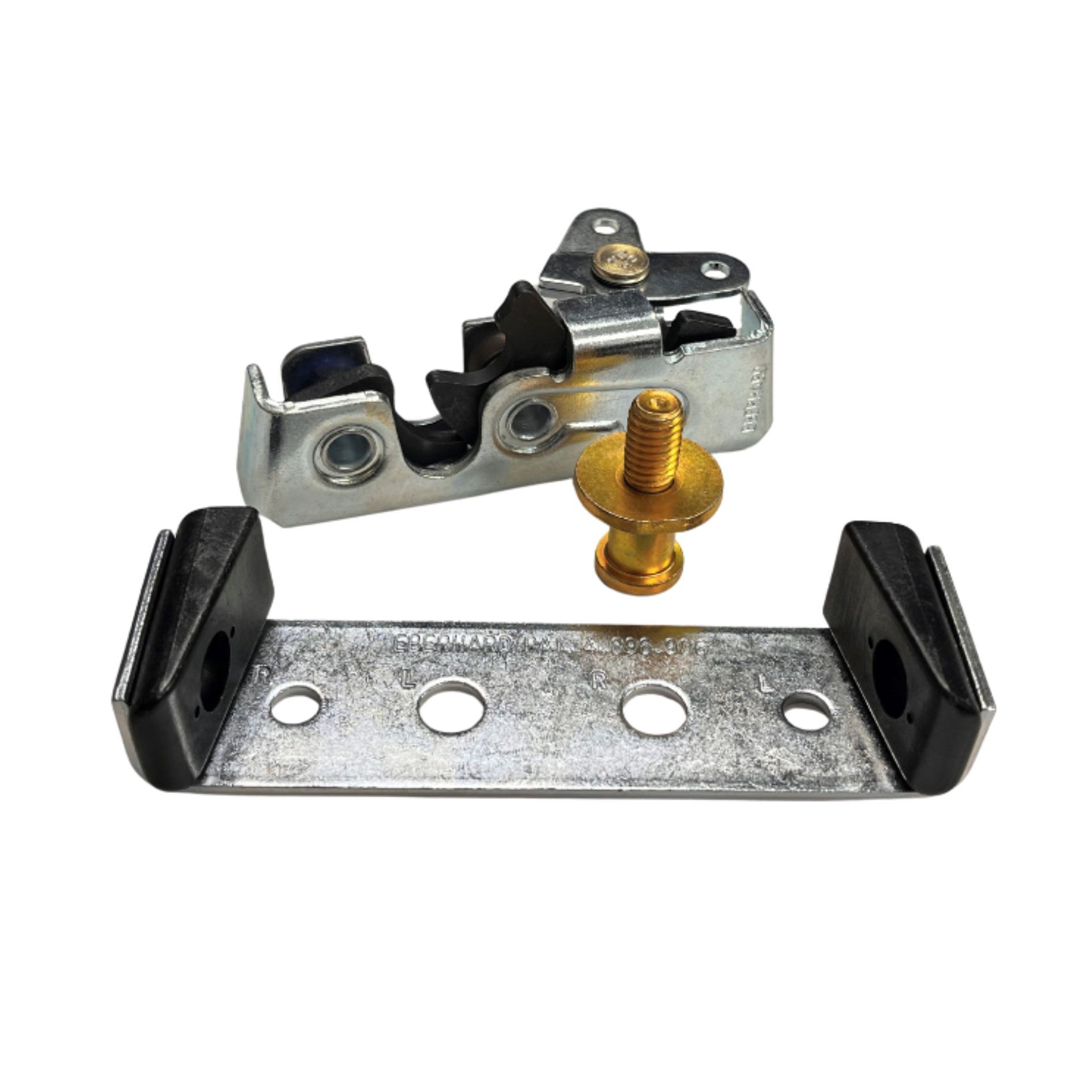

9D-400 Series

Large Rotary Latch

This FMVSS 206 rated series has a unique wedge design that improves door alignment and door sag to ensure better latch engagement. This is supplied as an assembly which includes the rotary latch and striker mounting bracket.

  • Right or left hand
  • Dual stage latching
  • To be used with a .55" diameter striker pin
  • Rated to a max load of 750lbs
  • Meets FMVSS 206 Passenger Restraint standards when used and tested with an Eberhard certified striker
Part Number Finish Material Size Handed FMVSS 206 Rated Stages Mounting Extras Striker Size Download
9D-400-UL-25 Zinc Steel 4.85"L x 1.25"W x 1.88"H Left Yes Dual Rotary and Striker Bracket - 5/16" dia. bolts Rotary and striker bracket assembly .55" 2D
9D-400-UR-25 Zinc Steel 4.85"L x 1.25"W x 1.88"H Right Yes Dual Rotary and Striker Bracket - 5/16" dia. bolts Rotary and striker bracket assembly .55" 2D, 3D
