Rotary Latches and Strikers

hgfhgfhfgh

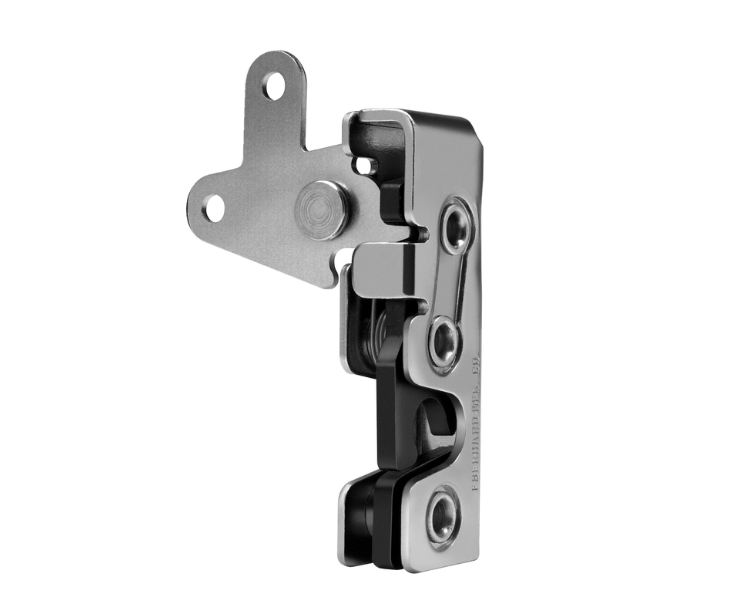

1-475 Series

Large Rotary Latch

  • Right or left hand
  • Dual stage latching
  • Low profile design
  • Dual actuator for 2 remote operations
  • Rated to a max load of 750lbs
  • To be used with a .50" diameter striker pin
  • Meets FMVSS 206 Passenger Restraint standards when used and tested with an Eberhard certified striker
Part Number Finish Material Size Handed FMVSS 206 Rated Stages Mounting Striker Size Download
1-475-R-64 Zinc Steel 3.88"L x .79"W x 1.25"H Right Yes Dual .26" thru holes .50" 2D, 3D
1-475-L-64 Zinc Steel 3.88"L x .79"W x 1.25"H Left Yes Dual .26" thru holes .50" 2D, 3D
