Rotary Latches and Strikers

product image
product image

hgfhgfhfgh

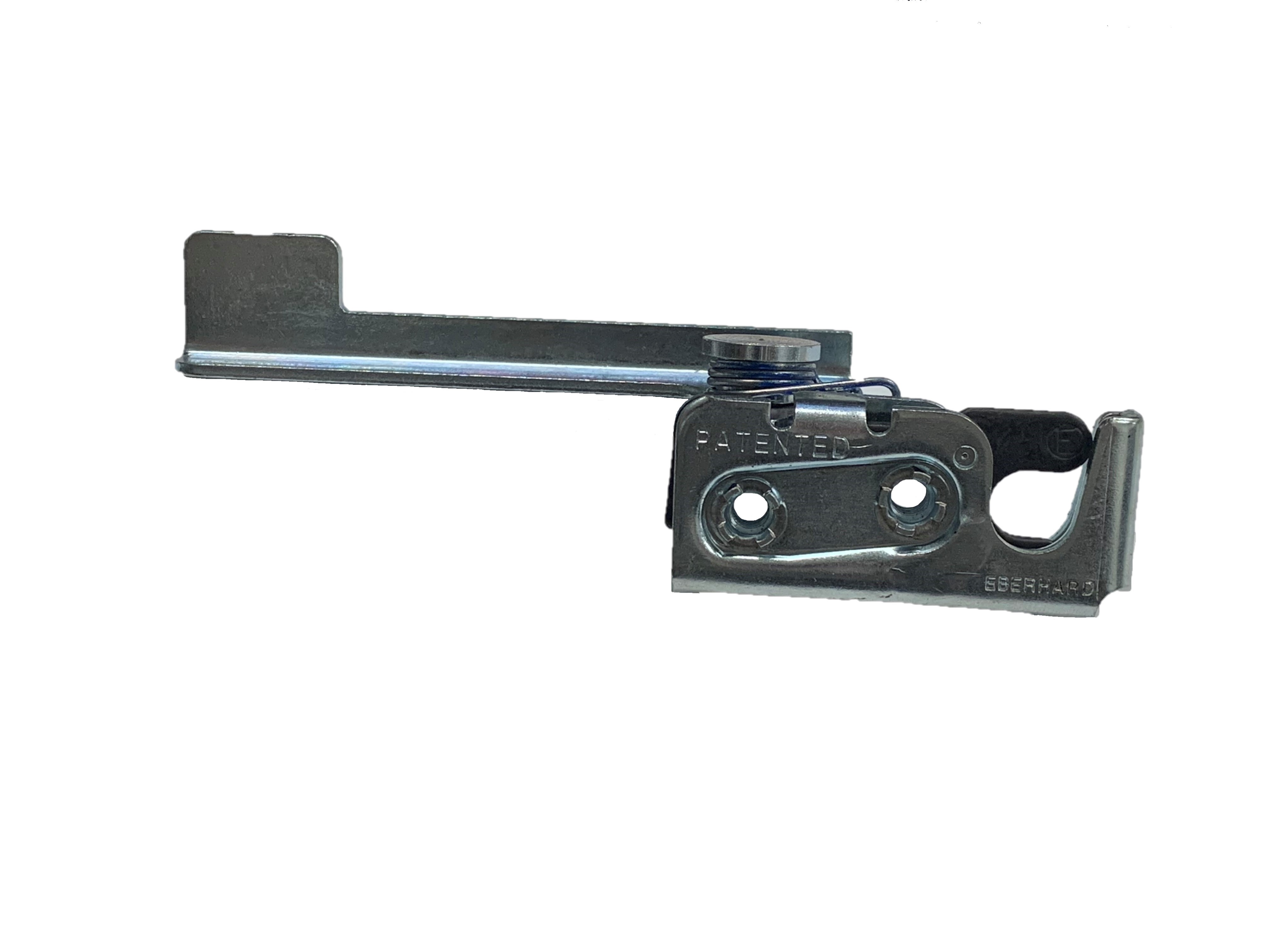

12-240 Series

Large Rotary Latch

  • Right or left hand
  • Dual stage latching
  • Single, horizontal lever arm actuator for hand operation
  • Rated to a max load of 750lbs
  • To be used with a .38" diameter striker pin
Part Number Finish Material Size Handed FMVSS 206 Rated Stages Mounting Extras Striker Size Download
12-240-L-24 Zinc Steel 2.50"L x .57"W x 1.13"H Left No Dual 1/4" x 20 threaded holes With lever for hand actuation .38" 2D, 3D
12-240-R-24 Zinc Steel 2.50"L x .57"W x 1.13"H Right No Dual 1/4" x 20 threaded holes With lever for hand actuation .38" 2D, 3D
