Rotary Latches and Strikers

hgfhgfhfgh

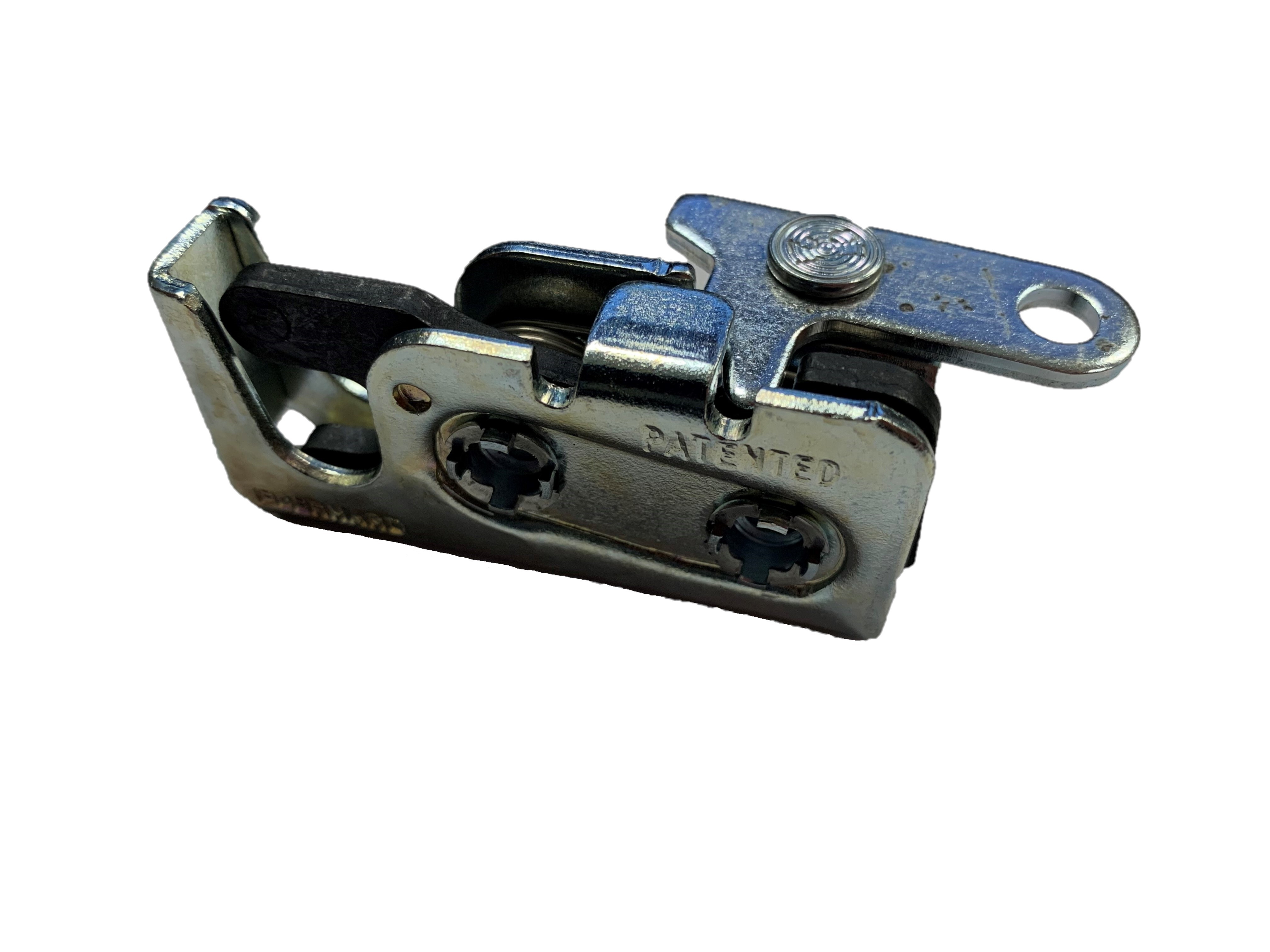

1-241 Series
Mini Rotary Latch

Right or left hand
Single stage latching
Single, horizontal with bend actuator for remote operation
Threaded or thru mounting hole options
Rated to a max load of 750lbs

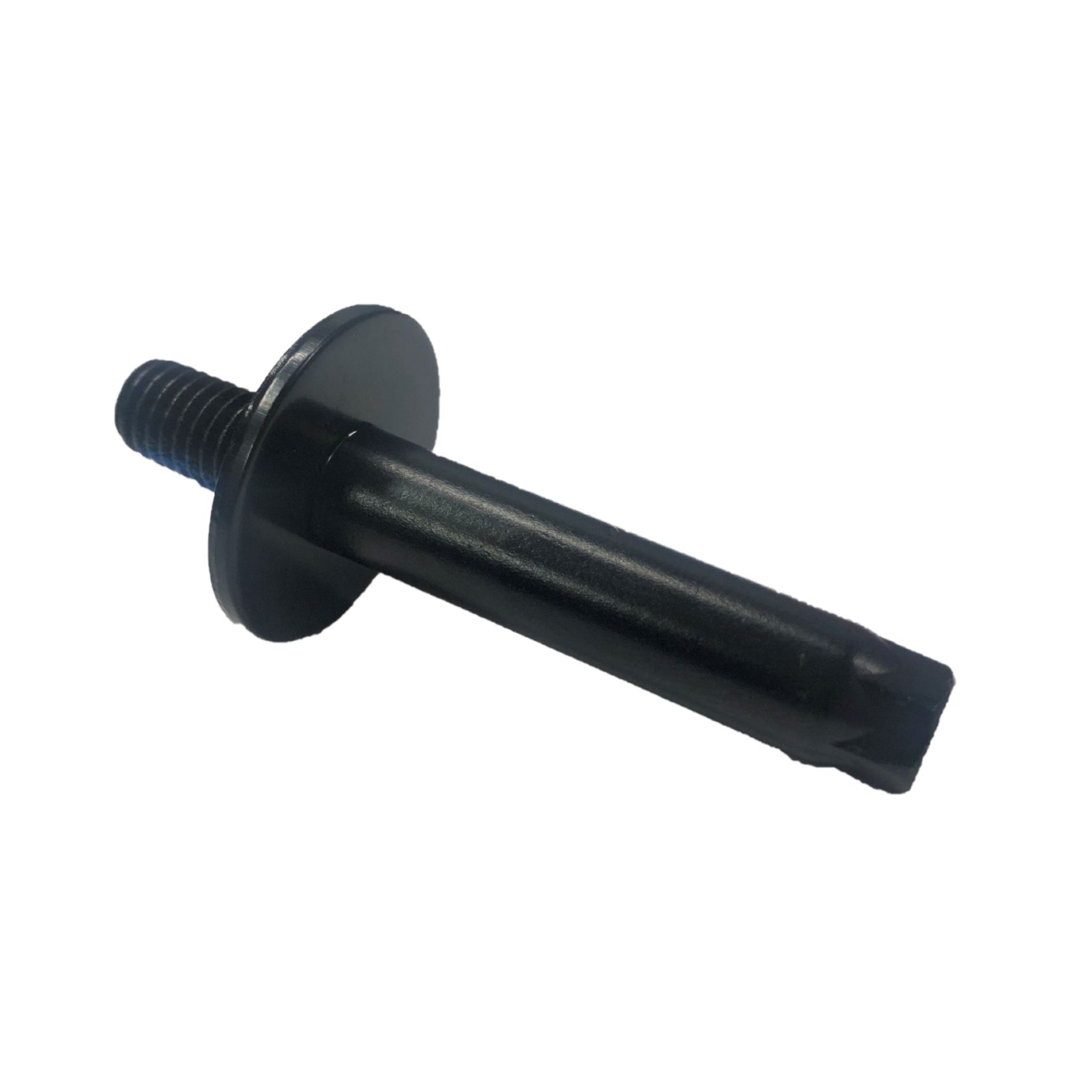

To be used with a .38" diameter striker pin

Part Number	Finish	Material	Size	Handed	FMVSS 206 Rated	Stages	Mounting	Striker Size	Download
1-241-L-54	Zinc	Steel	2.50"L x .57"W x 1.13"H	Left	No	Single	1/4" x 20 threaded holes	.38"	2D, 3D
1-241-R-54	Zinc	Steel	2.50"L x .57"W x 1.13"H	Right	No	Single	1/4" x 20 threaded holes	.38"	2D, 3D
1-241-NTR-54	Zinc	Steel	2.50"L x .57"W x 1.13"H	Right	No	Single	1/4" thru holes	.38"	2D, 3D
