Hinges

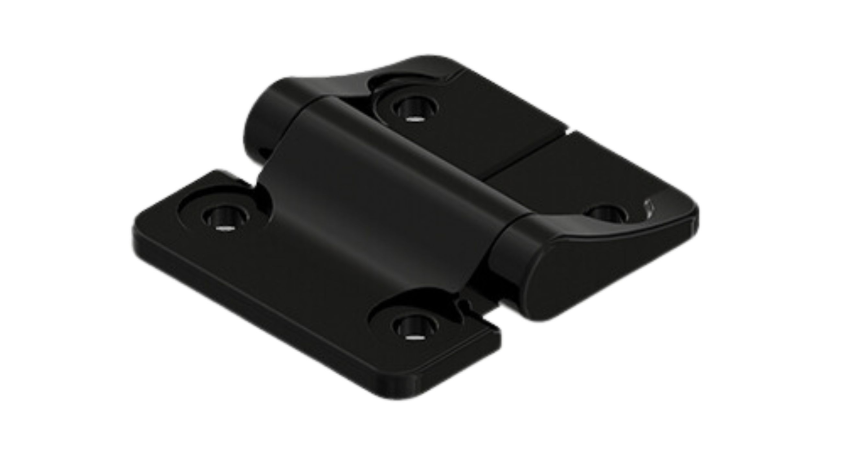

TH-20 Series
Position Control Hinge Assembly

Constant torque and smooth rotation
Long cycle life, zero maintenance
Zinc alloy material with black paint finish
20,000+ cycles (+/- 20% of static torque value)
270° rotation
Maximum radial load of 155 N (35 lbf)
Maximum axial load of 155 N (35 lbf)

Part Number	Finish	Material	Size	Mounting	Download
TH-20-S-0005	Black	Zinc Alloy	1.75"L x 1.50W x 0.40"H	Holes	2D
TH-20-S-0095	Black	Zinc Alloy	1.75"L x 1.50W x 0.40"H	Holes	2D
TH-20-S-0145	Black	Zinc Alloy	1.75"L x 1.50W x 0.40"H	Holes	2D
TH-20-S-0185	Black	Zinc Alloy	1.75"L x 1.50W x 0.40"H	Holes	2D
TH-20-S-0235	Black	Zinc Alloy	1.75"L x 1.50W x 0.40"H	Holes	2D
