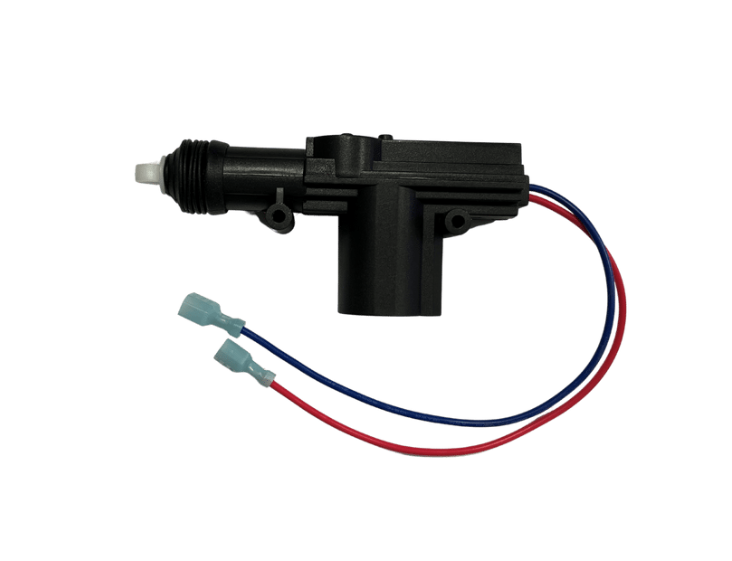

Power actuator with thermal protection to prevent motor burnout. Used with 1-16720-50PK-01 control module and harness.
- Universal thru mounting holes.

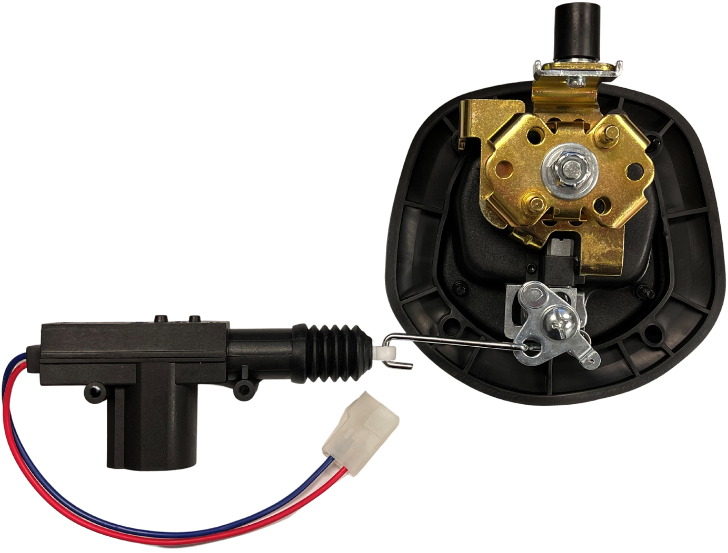

- Electric Actuator used with Power up series to lock and un-lock doors automatically.
Power Specifications
- Voltage: 12V
- Stall Current: 4.5A +/- 10%
- Operating -No Load and Full Load Current: 0.17 +/- 5% and 1.2A +/- 10%
Actuation Specifications
- Actuating Force: >6kgs.
- Actuation Travel: 21mm.
- Operation: FWD polarity 500mS, REV polarity 500mS.
Material
- Housing: ABS, black.
- Plunger: POM, white.
Environmental Specifications
- Endurance (Up and Down): >/= 201,500 times.
- Stroke: 21mm.
- Operating Temperature: -40 degrees Celsius to 80 degrees Celsius.
Wiring Options
- Deutsch connectors, bare wire, 18 gauge.
Certifications
Download 2D Drawing
