Rotary Latches and Strikers

hgfhgfhfgh

79-231-ML-BG

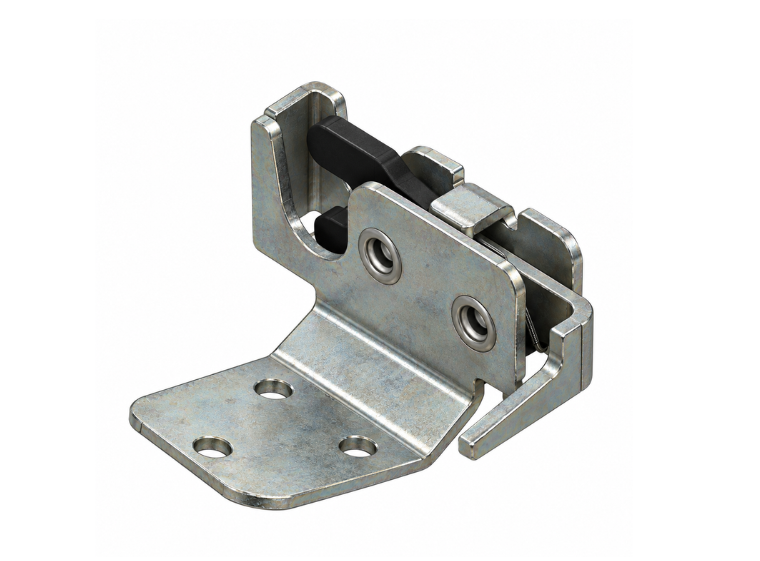

Large Rotary Latch

  • Left hand
  • Single stage latching
  • Integral mounting bracket
  • Metric threaded mounting holes
  • Lever for hand actuation
  • Rated to a max load of 750lbs
  • To be used with a .38" diameter striker pin
Part Number Finish Material Size Handed FMVSS 206 Rated Stages Mounting Extras Striker Size Download
79-231-ML-BG Zinc Steel 2.50"L x .58"W x 1.12"H Left No Single M6 x 1 threaded holes With lever for hand actuation .38" 2D, 3D
