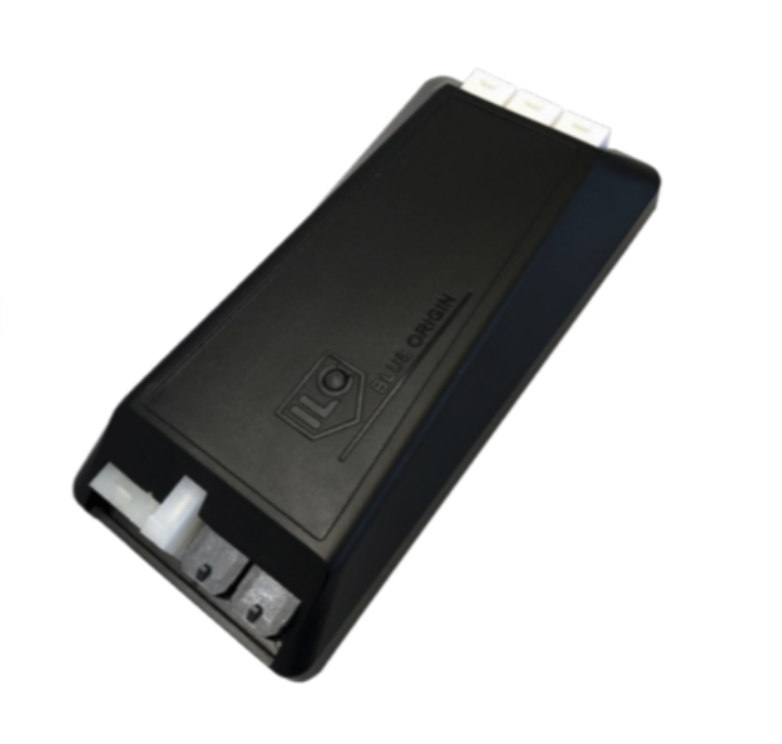

i-Lock BLUE

Controller / Bluetooth

PATENTED

Power Specification

  • 12V DC operation
  • Constant Power Source. such as vehicle/machine power
  • Low Power consumption mode draws 6 mA continuous of

electrical current in stand by mode

Communication

  • 2.4 Ghz RF Bluetooth 4.0

Multi user connectivity

Other devices in s system connect via Bluetooth

  • ILock Blue App
  • iOS
  • Android OS

Outputs

  • 3 individual outputs
  • 6VDC - 12VDC (+/- 10%)
  • Output Current (9A peak, 4.5A continuous, per output)
  • Output can be programed to device specifications types via App

Inputs

  • 2 inputs via push button or other Normally Open switching device.
  • 3.3V supply used for LED illumination
  • Voltage supply turned on when connected device is in range.
  • Output Control
  • Multi-button press responses.
  • Multi-output Control (Set up via app)

Environmental

  • -20° to 80°C (-4° to 176°F) ~95% RH





Additional Product Information

Usage

• Automotive
• Lockers
• Kiosk
• Medical
• Enclosures
• Industrial

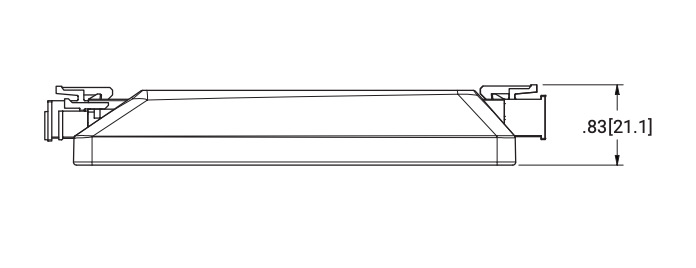

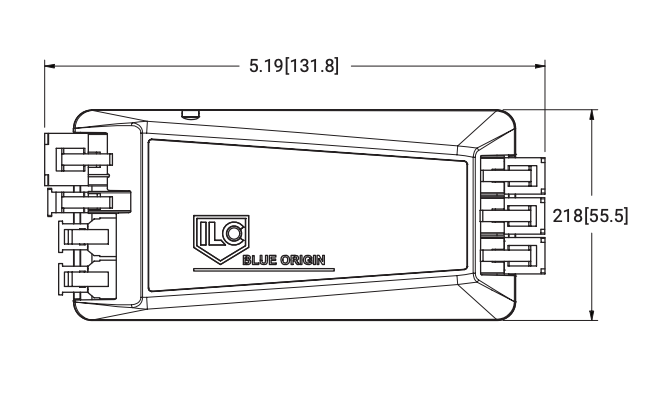

Dimension (inches)

5.18 x 2.18 x .83

Fact Sheet

Performance

• -20° to 80°C (-4° to 176°F) ~95% RH
• DC 12V +/-10% Nominal operating voltage

Features

• LED indicators
• Battery life indicator
• Three output activation
• Optional two input signals

Input Options

• i-BEAM™
• LED button switch
• Foot swipe sensor

Output Options

• Locking power module
• Linear powered rotary latch
• Electronic rotary latch
• LED light
