LNL-72-21007

EM Power Module

link

  • Dedicated power module for the LNL series handles.
  • Seal housing
  • Installed with E-clip
  • Electrical motor based system
  • i-Lock Blue/Bluetooth compatible (optional)
  • Motor control required

Power Specifications
  • Voltage: 12V nominal, 9-16V range
  • Stall Current: <500mA>
  • Full Load Current: <240mA>
Energizing Specifications
  • Actuation Travel: .180"
  • Operation: FWD pulse 230mS, REV pulse 230mS
Material Specifications
  • Housing: ABS, black
Environmental Specifications
  • Operating Temperature Range: -20 degrees Celsius to 70 degrees Celsius
  • Humidity: 5-95% RH
  • Endurance (full cycles): >/= 70,000 times
Options
  • Bare wire. 20 gauge
Certifications
  • RoHS.

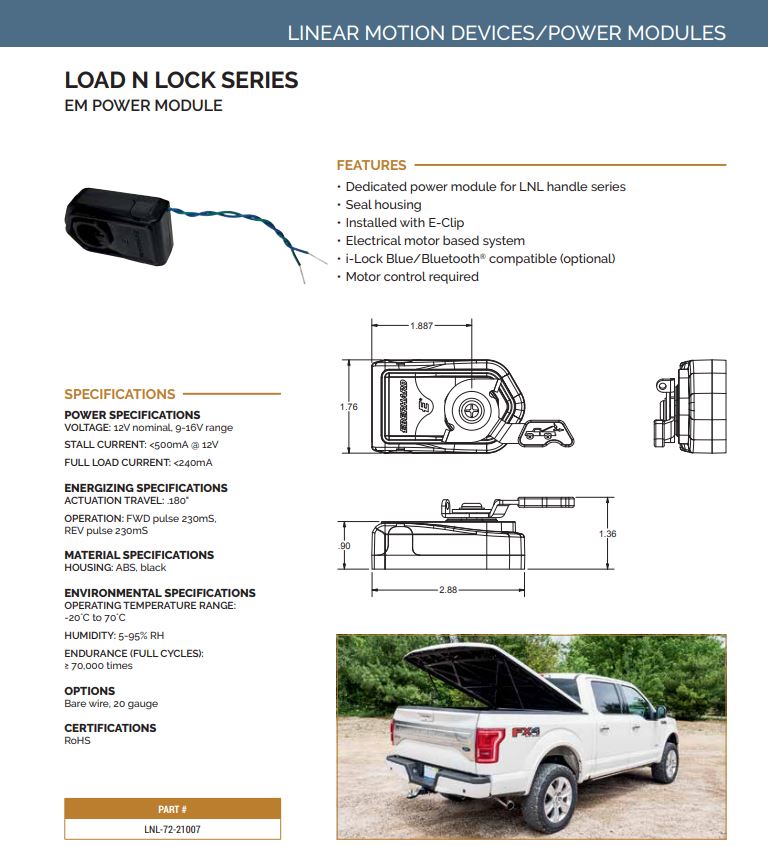

product image
product image

Additional Product Information

Download 2D Drawing
