Rotary Latches and Strikers

hgfhgfhfgh

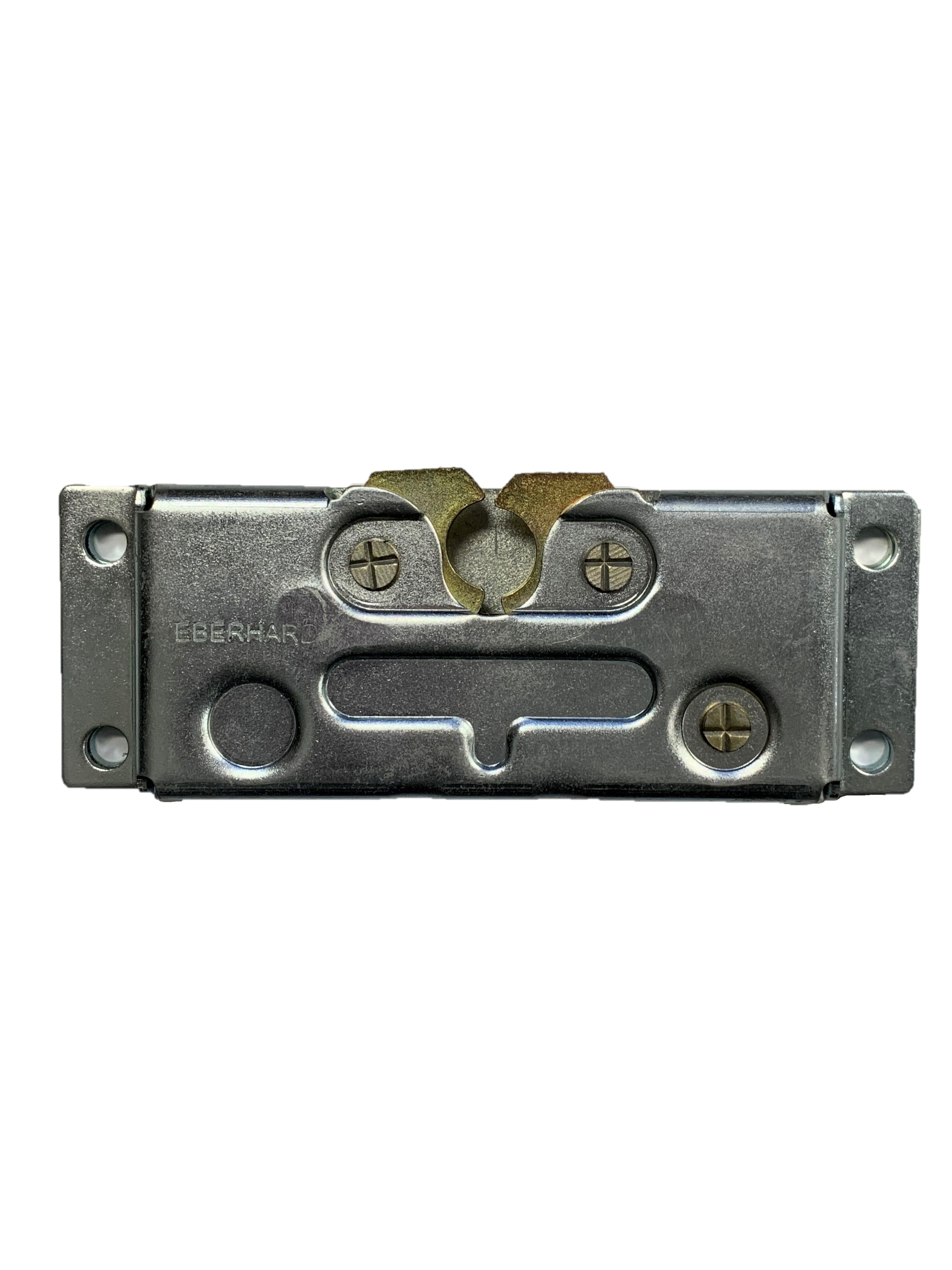

19420-L-BG

Extra Large Rotary Latch

  • Left hand
  • Dual stage latching
  • Rated to a max load of 750lbs
  • To be used with 19421-L-65 lever assembly and a .38" diameter striker pin
  • Meets FMVSS 206 passenger restraint standards when used and tested with an Eberhard certified striker
Part Number Finish Material Size Handed FMVSS 206 Rated Stages Mounting Striker Size Download
19420-L-BG Zinc Steel 5.50"L x .72"W x 2.18"H Left Yes Dual .29" thru holes .62" 2D, 3D
