Quarter Turns

product image
product image

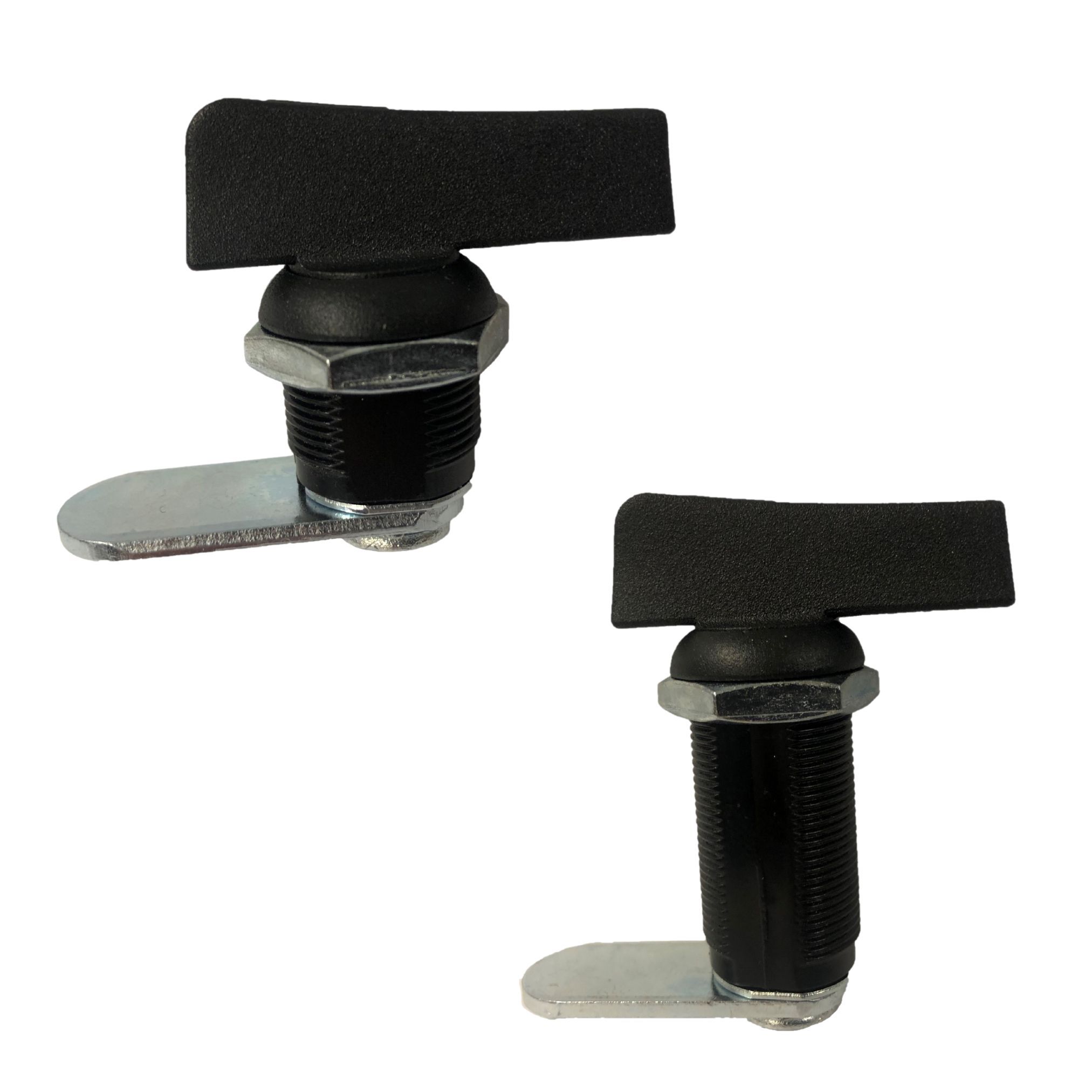

522 Series

Quarter Turn Latch

  • Knob style head
  • Various sizes available based on panel thickness
  • 90 degree rotation with indicator
  • Screw on cam design
  • Max panel thickness range: .33” to 1.32”
  • Grip range: .65” to 1.63”
  • Rated to IP 67 when installed with the supplied gasket
Part Number Finish Material Head Style Rotation Cam Style Max Panel Thickness Extras Download
15-522-42 Black Die cast Knob 90˚ Straight 0.33" Gasket and hex nut 2D
21-522-42 Black Die cast Knob 90˚ Straight 0.58" Gasket and hex nut 2D
28-522-42 Black Die cast Knob 90˚ Straight 0.83" Gasket and hex nut 2D
34-522-42 Black Die cast Knob 90˚ Straight 1.08" Gasket and hex nut 2D
40-522-42 Black Die cast Knob 90˚ Straight 1.32" Gasket and hex nut 2D
