Key Cylinders

hgfhgfhfghOut of Stock

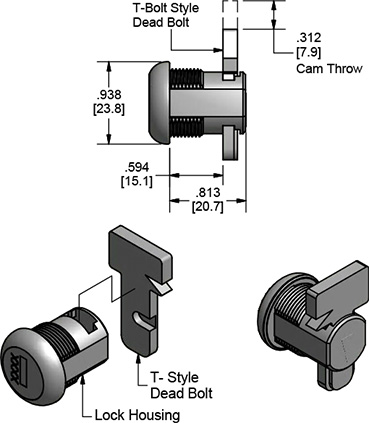

DTB1975 Series T-Bolt Style Dead Bolt Lock

  • DTB1975 Series T-Bolt Style Dead Bolt Lock
  • Deadbolt lock great for use when rotating cam lock is not an option
  • DTB1975 Series Single Bitted T-Bolt Style Dead Bolt Lock with Automotive Style Dust Shutter
  • T-Style cam or straight bolt available
  • Automotive style reversible key with optional plastic over molding

Additional Product Information

Inches part No Rotation Milimeters Spring Return Market Water Resistance Tumbler Count
19/32 DTB1975 180° Left & Right 15.1 N/A Automotive N/A 5 Disc Tumbler - Single Bitted Mechanism

Specifications

  • Deadbolt lock great for use when rotating cam lock is not an option.
  • T-Style cam or straight bolt available.
  • 5 Disc Tumbler - Single Bitted Mechanism.
  • Automotive style dust shutter.
  • Automotive style reversible key with optional plastic over molding.
  • 200 Key Changes.
  • Available keyed alike or keyed different.
  • DTB1975 Series

Material and Finish

  • Housing: Zinc alloy with stainless steel scalp and upgraded dust shutter.
  • Stainless steel face, chrome plated over double nickel.

Overview

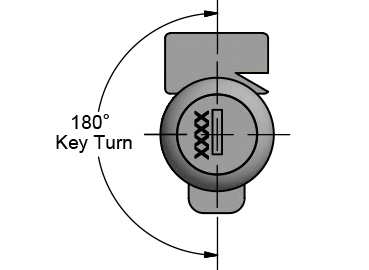

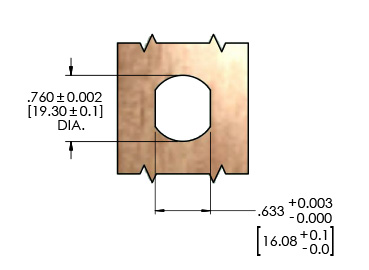

Cam Rotation & Installation

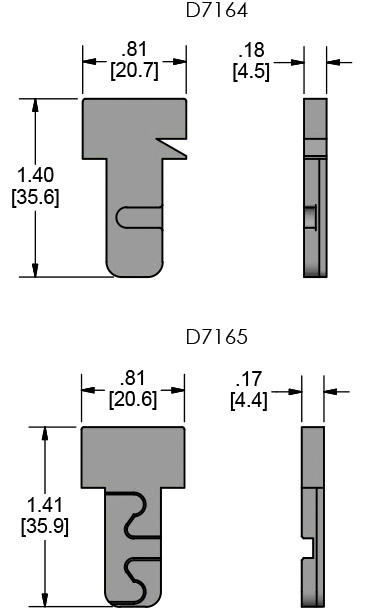

Bolt Styles

Accessories/Replacement Parts

product image

Nut Lock

PN: S9003A

product image

Barrel Nut M19

PN: D9868

product image

Spur Washer

PN: S2302A

product image

Spur Washer

PN: S2302B

product image

Anchor Washer

PN: S6951

product image

Flat Washer

PN: S2313

product image

Anchor Plate

PN: S2315A
