Key Cylinders
Additional Product Information
Specifications | Inches | part No | Rotation | Milimeters | Spring Return | Key Code | Market | Water Resistance | Tumbler Count | Length |
|---|---|---|---|---|---|---|---|---|---|
| 1.332 | DC697 | 90° Knob Turn, 180° Key Turn | 33.8 | No | Available keyed alike or keyed different in multiple lengths | Automotive | Yes | Various | 1.33" |
Specifications
- Outdoor wing locks resist moisture, dust, salt and extreme temperatures.
- Various Cams, rotations and key pulls.
- Available keyed alike or keyed different in multiple lengths.
- 200 key changes.
- Automotive style dust shutter.
- Automotive style reversible key with optional plastic over molding.
- DC692 can be used with rotary / slam latches.
- DC692, 697 Series
Material and Finish
- Housing: Zinc Alloy with stainless steel scalp and upgraded dust shutter.
- Finish: Textured black powder coat.
Overview
Cam Rotation & Installation

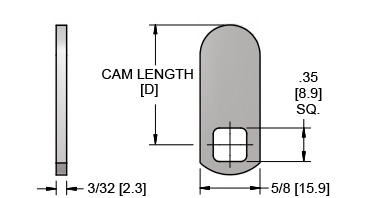

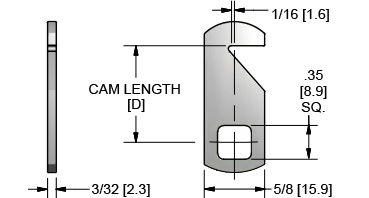

Cam Types
Accessories/Replacement Parts
Spur Washer
PN: S8952
Barrel Nut 15/16-24
PN: D9166
Rubber Gasket
PPN: P9267
