Cam Locks

DC698/DC699 Series

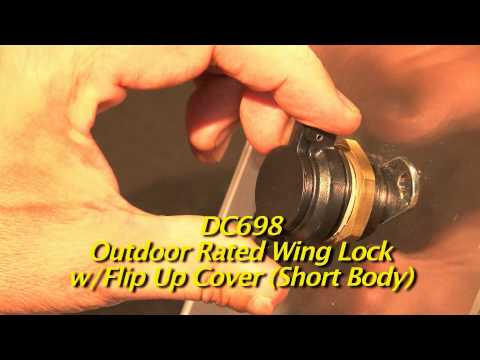

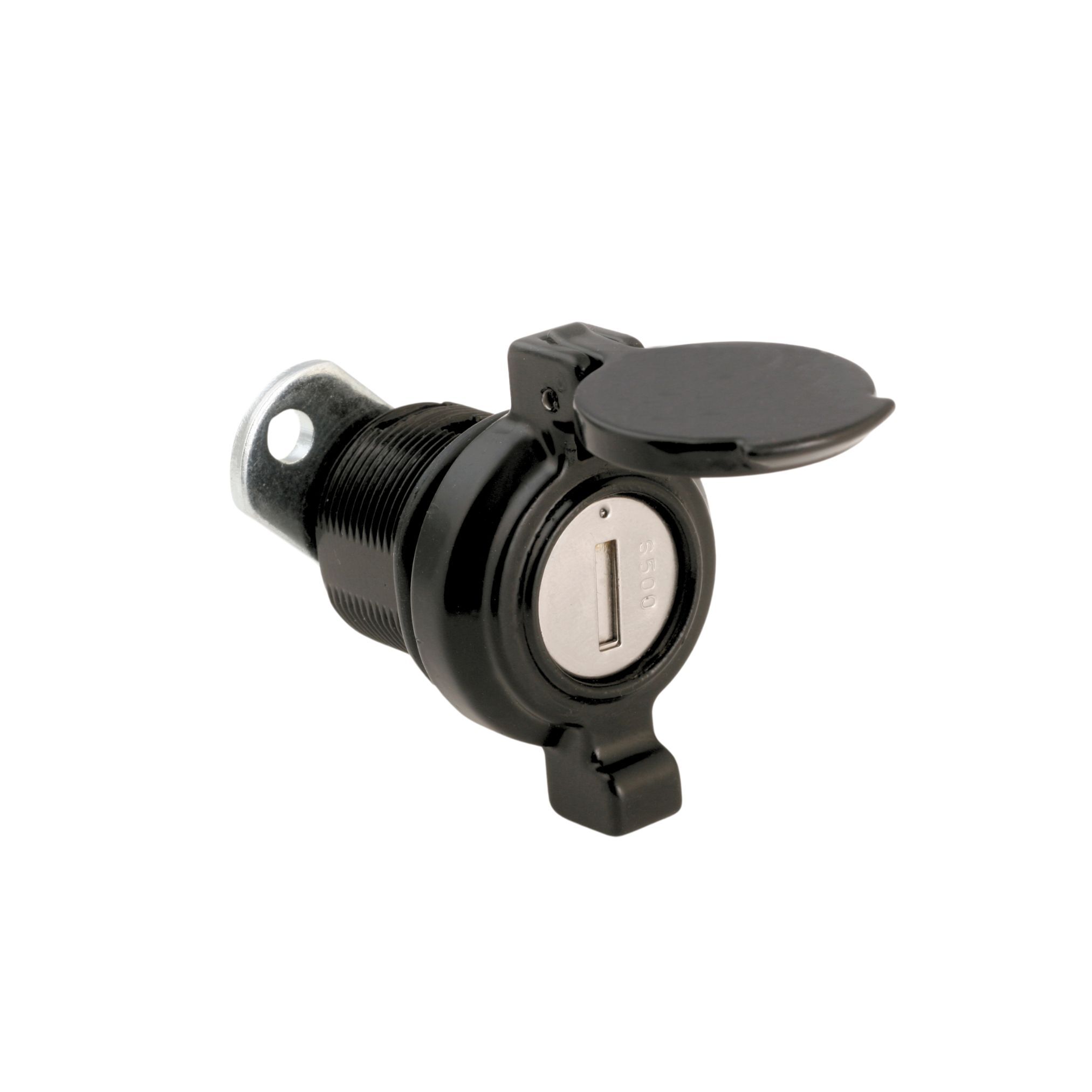

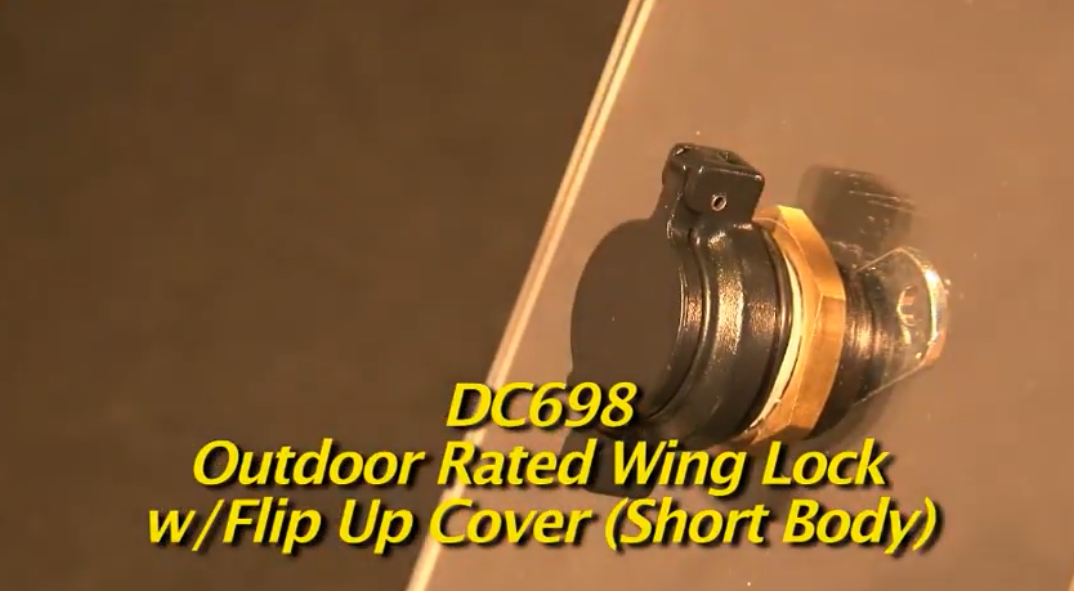

Weather Resistant Wing Handle Cam Locks

Resists moisture, dust, salt, and extreme temperatures
Short length for tight spaces
Various cams, rotations, and key pulls
Available keyed alike or keyed different in multiple lengths
200 key changes
Automotive style dust shutter and reversible key with optional plastic over molding
Optional built-in flip-up cover
Can be used with rotary/slam latches

Part Number	Finish	Material	Spring Return	Overall Length	Download
DC698	Black	Alloy	No	3/4	Spec sheet
DC699	Black	Alloy	Yes	3/4	Spec sheet

Accessories + Replacement Parts

Overview

Cam Rotation & Installation

Cam Types

Accessories/Replacement Parts

Spur Washer

PN: S8952

Retainer Clip

PN: S9197

Barrel Nut 15/16-24

PN: D9166

Rubber Gasket

PN: P9267
